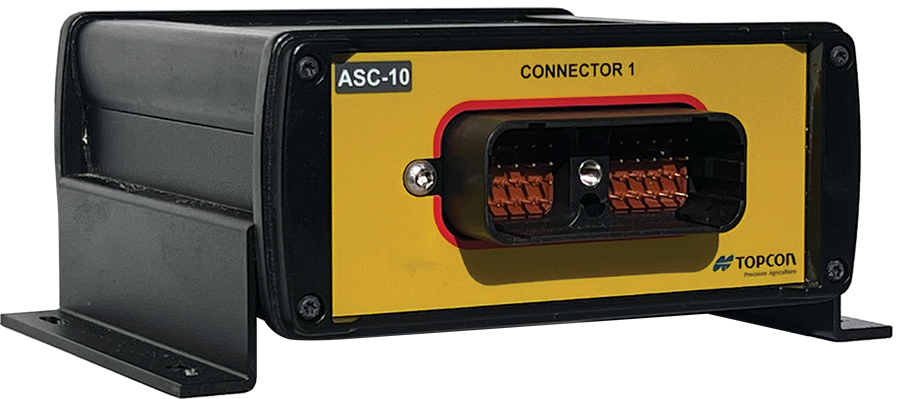

ASC-10

Topcon Spraying & Spreading ControlA

10-30 section control for spreading or spraying

The Topcon ASC-10 auto section controller provides ten-section sprayer or spreader control and handles point rows or triangular-shaped fields with ease. ASC-10 automatically switches sections on and off as you cross previously applied areas, move outside field boundaries, or cross exclusion zones.






Product Name: ASC-10
Product Type: Auto Section Control
Brand: TopCon
Perfect For: Spraying & Spreading


Advantages:

  • ISOBUS ECU with an ISO-UT (Universal Terminal) user interface
  • Variable Rate Application (VRA) and Section Control (SC)
  • Single beater or spinner speed monitoring and control
  • Application rate control proportional to forward speed
  • Ability to change rate on-the-go
  • Gate height control and monitoring

Specifications:

Operational:
Input Voltage*: 9 – 18V DC
*Protected with a 22V TVS
Communications:
RS-232C Serial: Internally selectable
Input Voltage: 10 section sensing; 10V CMOS logic level Capable of 30V
Output Voltage: 10 12V relay output rated to drive 1A @ 65 degrees
Physical and Environmental:
Standard: IP66
Operating Temperature: -20 to +60ºC
Storage Temperature: -40 to +80ºC
I/O Communications: 10 section sense inputs/drive outputs
* 2 Encoder inputs
** 2 Analog inputs
2 proportional or 2 regulator valve drives
