The RDS Systems Weighlog α10 incorporates the latest colour touchscreen technology providing a user-friendly on-board weighing system that can be used for tractors and loaders.

Loading correctly the first time maximises productivity, reduces vehicle movement, fuel usage and machine and tyre wear.

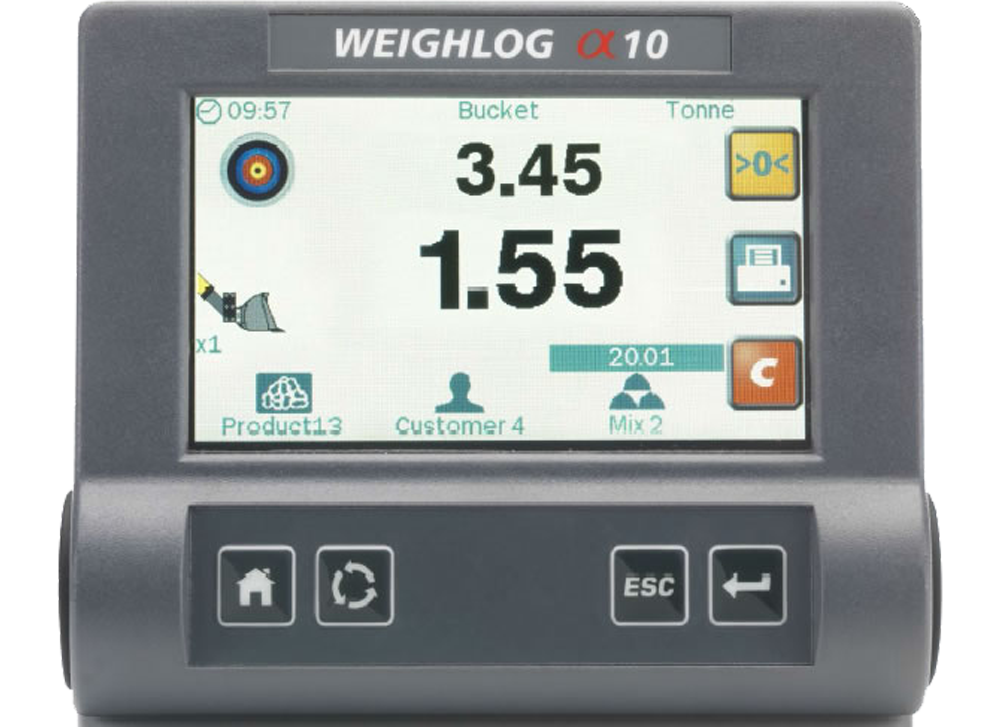

The display uses a 4.3” colour, high brightness resistive touchscreen with additional physical keys providing a modern and ergonomic operator interface.

Suitable for use with up to 10 different attachments, e.g. buckets or forks, the system can be retrofitted onto compact wheeled loaders, telehandlers, forklifts and skidsteer type loaders.

The system measures hydraulic pressure using up to four sensors at a certain position during the lifting cycle compensating for pressure changes in the system. Stores data for up to 30 products, 30 customers and up to 5 different recipes (macros) for mixing, dispensing and handling.

• Clean display and intuitive operation
• Static and dynamic weighing modes
• Accurate record keeping and traceability
• Safe and efficient data management
• Printable reporting

Specifications:

• Operating voltage: 10 - 30 Vdc
• Temperature range: -20 to +70°C operating
• System accuracy: +/-2% of capacity (or better)
• Sensor range: 0 - 250bar (others available)
